Economical /Industrial Pressure Gauge

Name: Economical /Industrial Pressure Gauge
Brand: MAYA ENTERPRISES
Price: 3500 INR
Availability: InStock

3500 INR/Piece

Get a Price/Quote

Product Details:

Thread BSP / NPT (customizable)
Case ABS / Mild Steel Black Painted / Stainless Steel
Sensor Type Bourdon Tube
Glass Size As per dial size
Display Analog (Dial)
Frequency Not Applicable (Mechanical Gauge) Hertz (HZ)
Outer Size 40mm, 50mm, 63mm, 100mm, 150mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Economical /Industrial Pressure Gauge Price And Quantity

Minimum Order Quantity 1000 Number
Price Range 1200.00 - 3500.00 INR/Piece
Price 3500 INR/Piece

Economical /Industrial Pressure Gauge Product Specifications

Height As per dial size (40150 mm) Millimeter (mm)
Accuracy 1.6% to 1% of Full Scale %
Sensor Type Bourdon Tube
Glass Size As per dial size
Grade Industrial Grade / Commercial Grade
Working Presssure Up to 75% of Full Scale (Continuous), 100% FS (Short Time)
Length As per dial size (40150 mm) Millimeter (mm)
Usage Pressure measurement in industrial, commercial, and domestic applications (air, water, gas, oil, steam, and other fluids).
Display Analog (Dial)
Thread BSP / NPT (customizable)
Frequency Not Applicable (Mechanical Gauge) Hertz (HZ)
Case ABS / Mild Steel Black Painted / Stainless Steel
Application Oil Refineries, Marine Engineering, Food And Beverages Industry, Textile Industry, Petro Chemical Plants, Pharmaceutical Manufacture, Chemical Processing, Mechanical Engineering, Water Engineering, Pulp And Paper Industry, Nuclear Power Engineering
Seal Material Neoprene / Rubber / Silicone (as per model)
Outer Size 40mm, 50mm, 63mm, 100mm, 150mm
Width As per dial size (40150 mm) Millimeter (mm)
Size 40mm, 50mm, 63mm, 100mm, 150mm (custom sizes available on request)
Color white Dial, Black Pointer, Black / Silver Case (as per model)
Product Type Gauges
Material Stainless Steel / Mild Steel / ABS + Brass or SS Connection

Economical /Industrial Pressure Gauge Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 5000 Number Per Month
Delivery Time 5 Days
Sample Policy Contact us for information regarding our sample policy

Product Description

A Pressure Gauge is an instrument used to measure and display the pressure of gases or liquids in a system It ensures safe and efficient operation by monitoring pressure levels in industrial commercial and domestic applications

Designed for air water oil gas and noncorrosive fluids

Available in economical ABSMS body and industrial SS body models

Pressure ranges from 01 kgcm up to 0400 kgcm

Dial sizes 40mm 50mm 63mm 100mm 150mm

Connection Brass Stainless Steel bottom or back mounted

Accuracy 16 to 1 of full scale

Applications

Hydraulic systems compressors pumps boilers pipelines and general industrial machinery

Versatile Industrial Application

Engineered for robust use, this pressure gauge is tailored for industries including oil refineries, marine engineering, food and beverage, chemical processing, textile, pharmaceuticals, pulp and paper, and nuclear power. Its mechanical Bourdon tube design ensures consistent, accurate readings in a wide variety of demanding settings.

Customizable Design and High Durability

Choose from multiple size options (40mm to 150mm), case materials, and thread types for flexible installation. Stainless steel, mild steel, ABS, and high-grade seals (neoprene, rubber, silicone) offer resilience against harsh operational conditions, making the gauge suitable for continuous monitoring up to 75% of full scale.

Reliable Mechanical Measurement

With no electrical frequency required, this analog gauge utilizes a mechanical Bourdon tube, delivering real-time pressure information with an accuracy of 1.6% to 1%. Its clear analog display allows for easy reading and quick diagnostics in high-precision applications.

FAQs of Economical /Industrial Pressure Gauge:

Q: How do I select the right pressure gauge size for my application?

A: The appropriate size depends on your installation space and readability requirements. Choose from dial sizes of 40mm, 50mm, 63mm, 100mm, or 150mm, each customizable to your process needs. Larger dials are easier to read from a distance and provide more precise readings.

Q: What materials and case options are available for this pressure gauge?

A: You can select from cases made of ABS, mild steel with black paint, or stainless steel. The connection parts are available in brass or stainless steel, while seal material options include neoprene, rubber, or silicone to match specific environmental challenges.

Q: Where are these pressure gauges commonly used?

A: These gauges are widely used in oil refineries, marine engineering, food and beverage industries, textile factories, petrochemical plants, pharmaceutical manufacture, water engineering, pulp and paper industry, and nuclear power plants.

Q: What is the pressure measurement and display process in this gauge?

A: The gauge uses a Bourdon tube as the sensor, which mechanically responds to pressure changes. The resulting movement is translated into precise analog dial readings, allowing users to monitor system pressure in real-time without any electronic components.

Q: How accurate are these industrial pressure gauges?

A: These gauges maintain an accuracy range between 1.6% and 1% of full scale, ensuring reliable measurement for critical applications. For the best performance, operate the gauge at up to 75% of its full-scale rating continuously, with short-term use permitted up to 100%.

Q: What benefits does this mechanical gauge offer over electronic alternatives?

A: Mechanical gauges, like this model, require no power supply and are less susceptible to electrical interference. Their robust construction ensures longevity and dependable performance even in electrically noisy industrial environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pressure Gauge' category

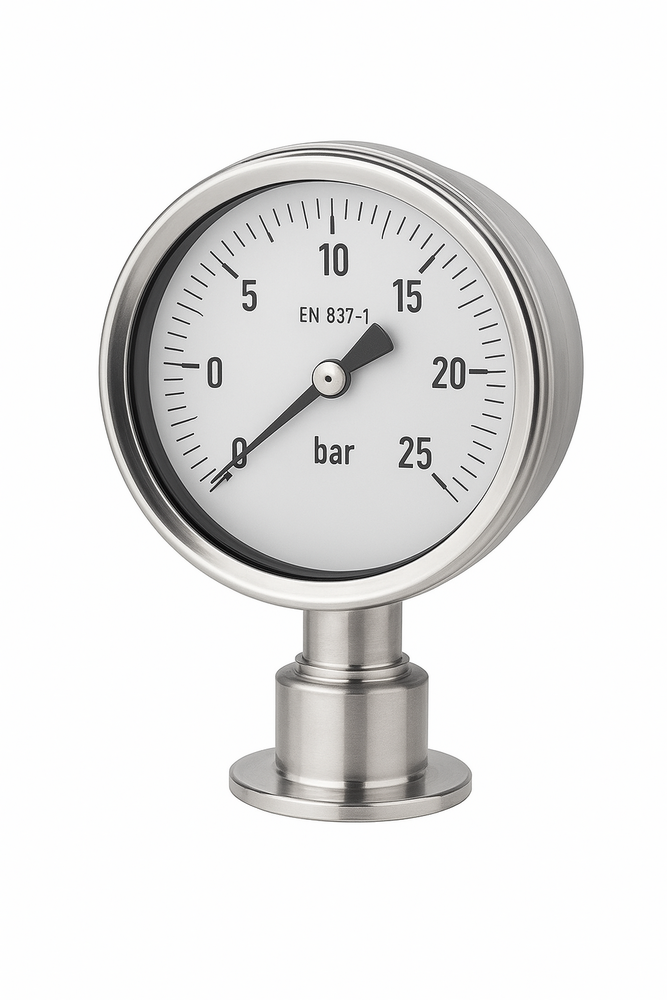

Homogenizer /Triclover Pressure Gauge Price : 1800 INR/Piece Minimum Order Quantity : 10 Working Presssure : Upto 10 bar (custom ranges available) Grade : SS304 / SS316 Food Grade Stainless Steel Case : Stainless Steel, Glycerin Filled (optional for vibration resistance) Thread : Triclover Clamp Connection (1.5 / 2) Width : Standard 3040 mm (approx.) Millimeter (mm) Material : Stainless Steel SS304 / SS316 Size : 100 mm / 150 mm Display : Analog Dial with Black Markings on White Background Length : Customizable as per fitting Millimeter (mm) Sensor Type : Mechanical (Diaphragm Based) Glass Size : Tempered Safety Glass, 100 mm / 150 mm Accuracy : 1.6% of Full Scale % Bourdon Tube : Diaphragm / Capsule type for sanitary application Height : Standard 100150 mm (depending on dial) Millimeter (mm) Seal Material : EPDM / PTFE / Silicone (foodgrade options) Outer Size : Standard (depends on dial chosen) Product Type : Triclover Sanitary Pressure Gauge Color : Silver (Stainless Steel Finish) Usage : Pressure measurement in sanitary & hygienic applications Application : Food And Beverages Industry, Pharmaceutical Manufacture, Chemical Processing, Water Engineering, Other Weight : Approx. 0.8 1.2 kg (depending on dial size) Kilograms (kg) Frequency : N/A (Analog Mechanical Gauge) Hertz (HZ)

Send Inquiry

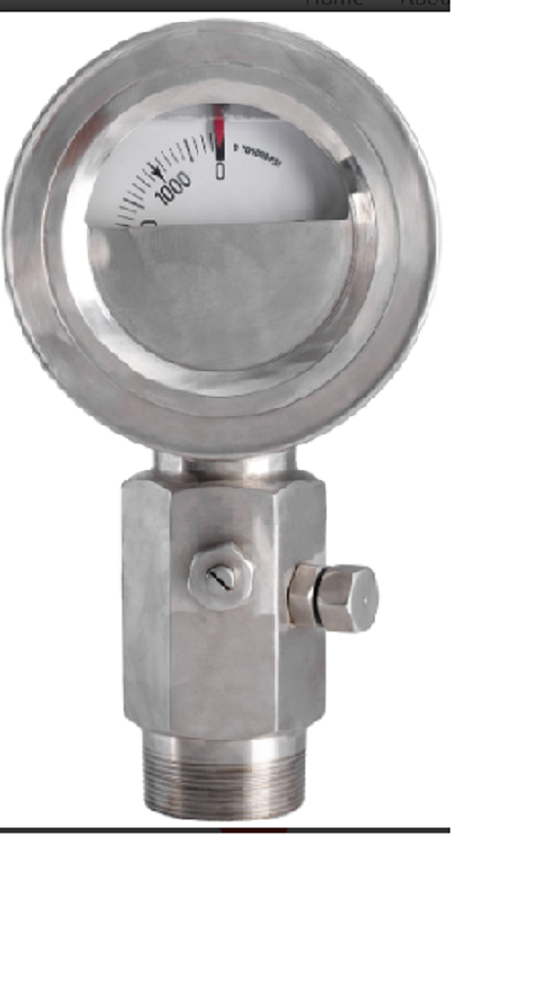

Mud pressure gauges Price : 1500.0 INR/Number Minimum Order Quantity : 100 Working Presssure : Up to 7000 PSI (500 bar) Grade : Industrial Grade / Oilfield Grade Case : Heavyduty Stainless Steel / Cast Steel, Glycerin filled (optional) Thread : BSP / NPT / Flanged connections available Width : Approx. 150200 mm Millimeter (mm) Material : Stainless Steel / Cast Steel Size : 6 / 8 (150 mm / 200 mm) Display : Analog Dial, Large Clear Markings Length : Custom as per connection (standard to 2 BSP/NPT) Inch (in) Sensor Type : Bourdon Tube Type Glass Size : Tempered Glass / Acrylic Safety Glass Accuracy : 1% of Full Scale % Bourdon Tube : Stainless Steel, corrosionresistant Height : Standard varies with model (approx. 200250 mm) Millimeter (mm) Seal Material : Nitrile / Viton / Teflon (as per application) Outer Size : 6 / 8 Dial Product Type : pressure gauge Color : Black / Silver (Stainless Steel Finish) Usage : Oilfield drilling, mud pumps, cementing operations, and heavy industrial pressure monitoring Application : Oil Refineries, Marine Engineering, Petro Chemical Plants, Chemical Processing, Mechanical Engineering, Pulp And Paper Industry, Nuclear Power Engineering Weight : Approx. 5 8 Kg (depending on size & range) Kilograms (kg) Measuring Range : 0 7000 PSI (0500 bar), custom ranges available Fahrenheit (oF)

Send Inquiry

Digital pressure gauges Price : 6500 INR/Number Minimum Order Quantity : 100 Working Presssure : Max 400 bar Grade : Industrial / High Accuracy Case : Stainless Steel / Aluminum / Plastic Thread : 1/4 or 1/2 NPT, BSP, G Width : 63mm Millimeter (mm) Material : Stainless Steel / Aluminum Size : Standard 63mm, 100mm, or 150mm diameter (varies by model). Display : LCD / LED, Backlit Length : 150 mm Nanometer (nm) Sensor Type : Piezoelectric / Strain Gauge Glass Size : Polycarbonate / Tempered Glass Accuracy : 0.25% FS / 0.5% FS % Bourdon Tube : Stainless Steel / Copper Alloy (if applicable) Height : 150mm Millimeter (mm) Seal Material : NBR / Viton / Silicone Outer Size : 63 mm / 100 mm / 150 mm (standard options) Product Type : Pressure Gauges Color : Silver/Black housing with black digits on white/grey LCD (backlit blue/white). Usage : Industrial, hydraulic, pneumatic, and laboratory pressure measurement. Weight : 150500g (depending on model and size). Grams (g)

Send Inquiry

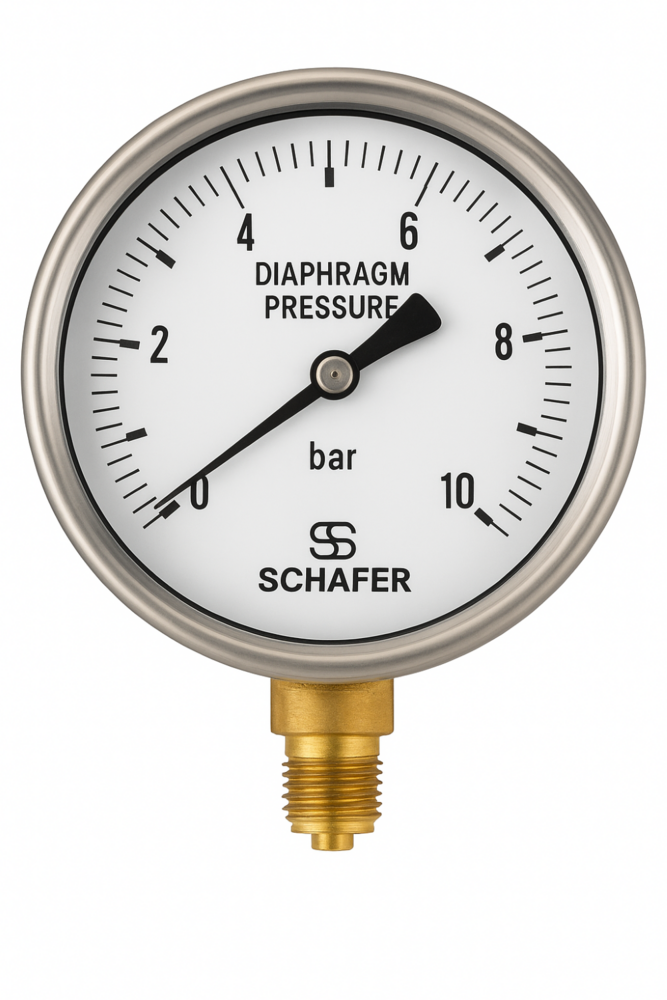

Schaefer Diaphragm Pressure Gauges Price : 5000 INR/Piece Minimum Order Quantity : 100 Working Presssure : Up to 75% of fullscale range (continuous), 100% short time Grade : Industrial Grade Case : Stainless Steel (SS304 / SS316) Thread : BSP / NPT (as per requirement) Width : As per dial size Millimeter (mm) Material : Stainless Steel body, SS or Brass connection Size : 100 mm 150 mm Display : Analog Dial (White background, black markings, red pointer) Length : As per dial size Millimeter (mm) Sensor Type : Diaphragm Element Glass Size : As per dial size (100 mm / 150 mm) Accuracy : 1.6% to 1% of Full Scale % Bourdon Tube : Not applicable (diaphragm type) Height : As per dial size Millimeter (mm) Seal Material : Neoprene / Nitrile / Silicone (as per model) Outer Size : 100 mm / 150 mm Application : Oil Refineries, Marine Engineering, Food And Beverages Industry, Textile Industry, Petro Chemical Plants, Pharmaceutical Manufacture, Chemical Processing, Mechanical Engineering, Water Engineering, Pulp And Paper Industry, Nuclear Power Engineering, Other Measuring Range : 01 bar to 025 bar (custom ranges available) Planck temperature () Frequency : Not Applicable (Mechanical Gauge) Hertz (HZ)
